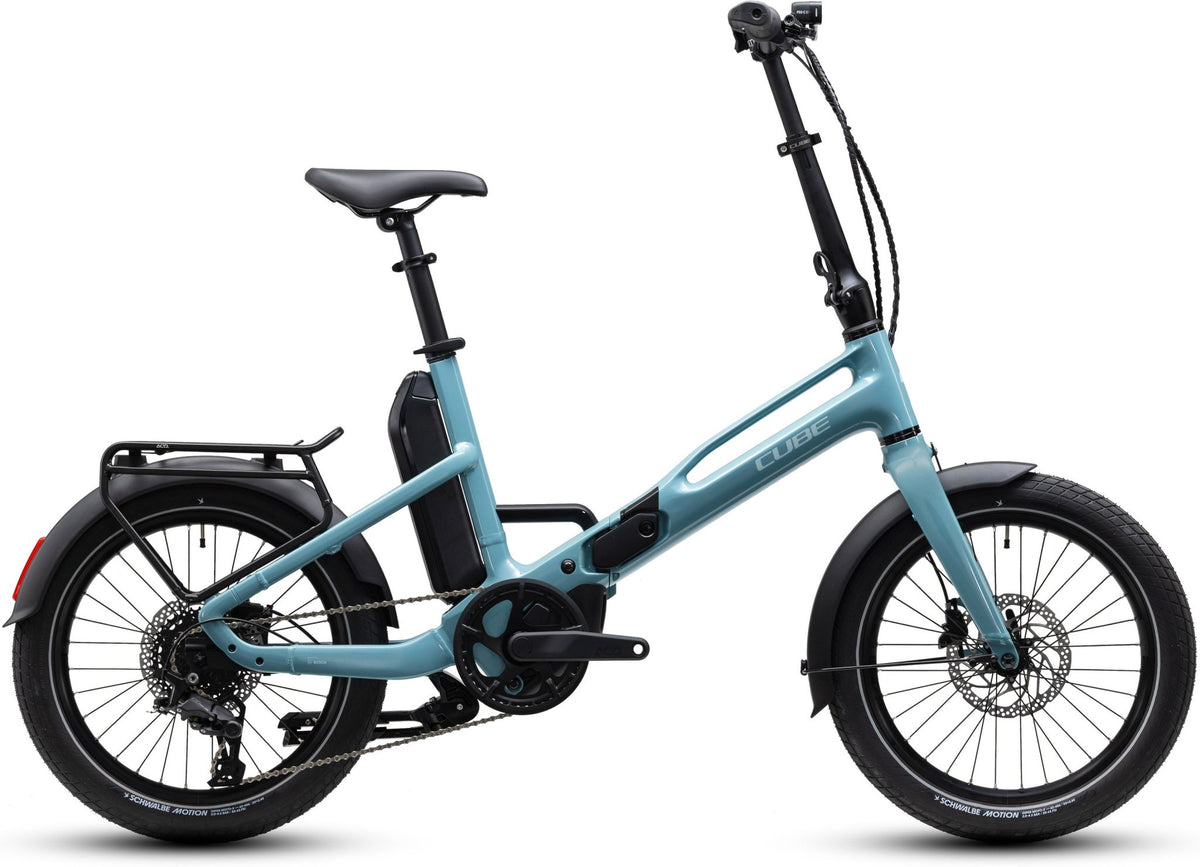

CUBE Fold Hybrid 540 2027 — Aruba Blue / Sky
A versatile folding e-bike with Shimano Cues nine-speed gearing for everyday rides and changing gradients. Fold the frame for storage or transport and use the integrated carry handle when moving the bike.
Full component specifications
| Model year | 2027 |
|---|---|
| Article number | 1120410 |
| Colour | Aruba Blue / Sky |
| Frame | Aluminium Superlite; Comfort Ride Geometry; integrated folding; carry handle; integrated carrier |
| Size | 20-inch One Size; rider height approximately 160–190 cm |
| Fork | Aluminium rigid, 20-inch |
| Motor | Bosch Performance Line BDU34, Smart System; 250 W rated |
| Torque | 75 Nm |
| Assistance cut-off | 25 km/h |
| Battery | Bosch PowerPack 540 Wh |
| Display / remote | Bosch Purion 200 |
| Charger | Bosch 2A |
| Brakes | Shimano BR-MT200 hydraulic disc; 180 mm front / rear |
| Shifters | Shimano Cues SL-U4010 Rapidfire-Plus |
| Rear derailleur | Shimano Cues RD-U4010, nine-speed |
| Crankset | ACID Trekking Hybrid, 44T |
| Cassette | Shimano CS-LG300, 11–36T |
| Chain | KMC eGlide |
| Rear hub | Shimano FH-QC300-HM; QR; Centerlock |
| Headset | Acros Zero-Stack 1½-inch; ZS56 top / bottom; HIC |
| Stem | CUBE folding, adjustable; 25.4 mm clamp |
| Handlebar | CUBE Comfort Trail Bar; 25.4 mm |
| Grips | ACID Travel Comfort |
| Rims | ACID EX30; 32H; disc; tubeless ready |
| Front hub | Shimano HB-QC300; QR; Centerlock |
| Tyres | Schwalbe Motion Super Moto-X, Double Defense, 62-406 |
| Saddle | ACID Sequence 160 Pro Bubble Foam |
| Seatpost | Satori Sorata; 34.9 mm; telescopic 280–440 mm |
| Pedals | Aluminium folding |
| Front light | ACID PRO-E 80 X-Connect; 12V DC |
| Rear light | ACID Mudguard PRO-E; 12V DC |
| Kickstand | Two-leg |
| Mudguards | ACID 62 IC-Mount |
| Bell | Easy Bell |
| Carrier | ACID 20-inch Seatstay-Integrated; RILink; SM-Link |
| Bike weight | 25.3 kg |
| Maximum rider weight | 100 kg, including worn clothing and equipment |
Geometry and folded dimensions
| Seat tube / horizontal top tube | 448 / 620 mm |
|---|---|
| Seat / head tube angles | 74° / 71° |
| Chainstays / head tube | 444 / 145 mm |
| Wheelbase | 1,144 mm |
| BB height to hub | 20 mm |
| Reach / stack | 494 / 441 mm |
| Stem / handlebar / crank length | 25 / 640 / 165 mm |
| Seatpost length / diameter | 440 / 34.9 mm |
| Maximum seatpost insertion | 217 mm |
| Maximum tyre diameter / width | 539 / 66 mm |
| Folded dimensions | 810 mm high × 920 mm wide × 450 mm long |
| Maximum bike length / width | 1,720 / 390 mm |
Component specification checked against CUBE’s official model specification on 21 October 2026. Components may vary with manufacturer supply changes. A model-specific full-charge time and guaranteed distance per charge are not published in this specification.
Range
Distance per charge depends on assistance level, rider and luggage weight, hills, wind, temperature and tyre pressure. A minimum 70 km range has not been verified for this model. Please contact Lifty so we can assess your route before choosing a bike for a 70 km journey.
Availability and delivery to Ireland
Available to order — delivery lead time applies. As checked on 21 October 2026, replenishment is estimated at six weeks or more. Transport and preparation time follow stock arrival. Please contact Lifty for a confirmed arrival estimate; no fixed delivery date is currently confirmed. Delivery charges are shown at checkout.
More product photos
01 WHAT THIS PRODUCT IS & ROAD RULES
CUBE Fold Hybrid 540 2027 — Aruba Blue / Sky
CUBE Fold Hybrid 540 2027 — Aruba Blue / Sky
A versatile folding e-bike with Shimano Cues nine-speed gearing for everyday rides and changing gradients. Fold the frame for storage or transport and use the integrated carry handle when moving the bike.
Full component specifications
| Model year | 2027 |
|---|---|
| Article number | 1120410 |
| Colour | Aruba Blue / Sky |
| Frame | Aluminium Superlite; Comfort Ride Geometry; integrated folding; carry handle; integrated carrier |
| Size | 20-inch One Size; rider height approximately 160–190 cm |
| Fork | Aluminium rigid, 20-inch |
| Motor | Bosch Performance Line BDU34, Smart System; 250 W rated |
| Torque | 75 Nm |
| Assistance cut-off | 25 km/h |
| Battery | Bosch PowerPack 540 Wh |
| Display / remote | Bosch Purion 200 |
| Charger | Bosch 2A |
| Brakes | Shimano BR-MT200 hydraulic disc; 180 mm front / rear |
| Shifters | Shimano Cues SL-U4010 Rapidfire-Plus |
| Rear derailleur | Shimano Cues RD-U4010, nine-speed |
| Crankset | ACID Trekking Hybrid, 44T |
| Cassette | Shimano CS-LG300, 11–36T |
| Chain | KMC eGlide |
| Rear hub | Shimano FH-QC300-HM; QR; Centerlock |
| Headset | Acros Zero-Stack 1½-inch; ZS56 top / bottom; HIC |
| Stem | CUBE folding, adjustable; 25.4 mm clamp |
| Handlebar | CUBE Comfort Trail Bar; 25.4 mm |
| Grips | ACID Travel Comfort |
| Rims | ACID EX30; 32H; disc; tubeless ready |
| Front hub | Shimano HB-QC300; QR; Centerlock |
| Tyres | Schwalbe Motion Super Moto-X, Double Defense, 62-406 |
| Saddle | ACID Sequence 160 Pro Bubble Foam |
| Seatpost | Satori Sorata; 34.9 mm; telescopic 280–440 mm |
| Pedals | Aluminium folding |
| Front light | ACID PRO-E 80 X-Connect; 12V DC |
| Rear light | ACID Mudguard PRO-E; 12V DC |
| Kickstand | Two-leg |
| Mudguards | ACID 62 IC-Mount |
| Bell | Easy Bell |
| Carrier | ACID 20-inch Seatstay-Integrated; RILink; SM-Link |
| Bike weight | 25.3 kg |
| Maximum rider weight | 100 kg, including worn clothing and equipment |
Geometry and folded dimensions
| Seat tube / horizontal top tube | 448 / 620 mm |
|---|---|
| Seat / head tube angles | 74° / 71° |
| Chainstays / head tube | 444 / 145 mm |
| Wheelbase | 1,144 mm |
| BB height to hub | 20 mm |
| Reach / stack | 494 / 441 mm |
| Stem / handlebar / crank length | 25 / 640 / 165 mm |
| Seatpost length / diameter | 440 / 34.9 mm |
| Maximum seatpost insertion | 217 mm |
| Maximum tyre diameter / width | 539 / 66 mm |
| Folded dimensions | 810 mm high × 920 mm wide × 450 mm long |
| Maximum bike length / width | 1,720 / 390 mm |
Component specification checked against CUBE’s official model specification on 21 October 2026. Components may vary with manufacturer supply changes. A model-specific full-charge time and guaranteed distance per charge are not published in this specification.
Range
Distance per charge depends on assistance level, rider and luggage weight, hills, wind, temperature and tyre pressure. A minimum 70 km range has not been verified for this model. Please contact Lifty so we can assess your route before choosing a bike for a 70 km journey.
Availability and delivery to Ireland
Available to order — delivery lead time applies. As checked on 21 October 2026, replenishment is estimated at six weeks or more. Transport and preparation time follow stock arrival. Please contact Lifty for a confirmed arrival estimate; no fixed delivery date is currently confirmed. Delivery charges are shown at checkout.
More product photos
MODEL CLASSIFICATION & BIKE TO WORK
Check the exact variant’s motor rating, assistance cut-off, throttle and manufacturer classification before relying on road-use or scheme eligibility. A product category or brand name alone does not establish compliance.
Revenue’s tax-exemption limits are €1,500 for a qualifying e-bike or pedelec and €3,000 for a qualifying cargo bike, including eligible safety equipment. These are purchase limits, not tax refunds. Employer participation, eligible journeys and scheme rules apply; personal savings vary.
02 KEY SPECIFICATIONS & NUMBERS
01 MOTOR WATTAGE & POWERTRAIN (250W EPAC) 250W Bosch Performance Line BDU34
Strict 250W continuous nominal power rating compliant with EN 15194 European and Irish EPAC regulations. Electric motor assistance disengages automatically at 25 km/h. Fitted with sensitive pedalling cadence or bilateral torque sensors for smooth, natural power assist without sudden jerking.
Road-use suitability depends on the exact model and supplied configuration. Check the current RSA guidance and the product specification before riding.
02 HILL-CLIMBING TORQUE (NM) 75
Torque describes motor turning force. Hill-climbing performance also depends on motor design, assistance settings, gradient, gearing, total load and rider input.
Compare the model-specific torque information with your route and total load. A torque figure alone does not guarantee performance on a particular hill or at a junction.
03 BATTERY PACK & CELLS (V, AH, WH) Bosch PowerPack 540 Wh
Battery protection features and certifications are model-specific. Check the documentation for the exact battery system; voltage and capacity alone do not establish safety certification.
Battery removal and charging arrangements vary by model. Check the exact model specification and owner manual before purchase.
04 RANGE BENCHMARKS (ECO VS DUBLIN COMMUTE) (Eco) / (Dublin)
Tested on flat tarmac with a 65 kg rider, minimal wind resistance, continuous gentle pedalling, and warm ambient temperature.
Verified for Irish conditions: coastal headwinds across Dublin Bay, frequent traffic light stops, winter temperatures (4–8°C), and normal luggage.
05 CHARGING SYSTEM & DURATION
Regulated CC/CV smart charger with auto-shutoff once full capacity is achieved. Protects cell chemistry and maintains pack longevity over hundreds of charge cycles.
Charging cost depends on battery capacity, charger losses and your electricity tariff. Use the model’s published watt-hour capacity when estimating cost.
06 FRAME GEOMETRY & RIDER SIZING
Ergonomic rider geometry balancing agile urban steering with high-speed tracking stability over road irregularities, tram lines, and wet asphalt.
07 VEHICLE WEIGHT & SYSTEM PAYLOAD 25.3 // 100 kg including worn clothing and equipment
Engineered strength-to-weight ratio ensuring frame stiffness under load while maintaining manageable weight for apartment living, car racks, or hallway parking.
08 BRAKING SYSTEM & ROTORS Shimano BR-MT200 hydraulic disc, 180/180 mm
Brake performance depends on the fitted system, component condition, adjustment, tyres and road surface. Check the exact model specification before ordering replacement parts.
Allow for longer stopping distances on wet or contaminated surfaces. Have worn pads, damaged rotors or inconsistent braking checked before riding.
09 DRIVETRAIN & TRANSMISSION
Follow the manufacturer’s guidance for shifting, drivetrain care and adjustment. The fitted gearing and components vary by model.
All drivetrain components are inspected, tuned, and torqued to manufacturer specifications prior to customer delivery by our workshop at 157 Capel Street.
10 WEATHERPROOFING & IP RATINGS
Rain resistance varies by model. Follow the manufacturer’s manual and avoid immersion or pressure washing. Workshop sealing is model dependent; it does not create a certified IP rating or automatically extend warranty cover. Confirm the available service, price and written terms before booking.
Rain resistance varies by model. Follow the manufacturer’s manual and avoid immersion or pressure washing. Workshop sealing is model dependent; it does not create a certified IP rating or automatically extend warranty cover. Confirm the available service, price and written terms before booking.
03 PARTS & ACCESSORIES: FITMENT CHECK
We have not yet confirmed specific compatible parts or machines for CUBE Fold Hybrid 540 2027 — Aruba Blue / Sky.
Compatibility must be confirmed for your exact model, year or revision and the selected part. Send us the model details and clear photos of the existing part, connectors and labels before ordering.
For chargers and batteries, the voltage, current, battery system, connector, polarity and any communication protocol must all be approved for the exact machine. A matching plug or similar product name does not establish compatibility.
04LIFTY LABS DUBLIN WORKSHOP (SERVICING & REPAIRS)
Workshop support is available at 157 Capel Street, Dublin 1. Bring your complete vehicle for intake on Tuesday, Thursday or Saturday, 13:00–16:30. Contact us first with the model and symptoms to confirm support, scope, price and availability. Completion time depends on diagnosis, parts and workload.
Rain resistance varies by model. Follow the manufacturer’s manual and avoid immersion or pressure washing. Workshop sealing is model dependent; it does not create a certified IP rating or automatically extend warranty cover. Confirm the available service, price and written terms before booking.
View workshop services and current prices · Electric scooter repairs
05 WARRANTY COVERAGE & DELIVERY RATES
MODEL-SPECIFIC WARRANTY INFORMATION
Warranty duration, covered components and exclusions depend on the exact model and written terms. Check the product warranty and Lifty’s policy before purchase. Optional workshop weather protection does not automatically change manufacturer cover. Your statutory consumer rights are separate from a commercial warranty.
Bicycle delivery within Dublin: €89. Delivery outside Dublin within Ireland: €99.
Free delivery within Ireland applies only when a single order exceeds €4,000. UTO e-bikes remain collection only.
Store collection is free at 157 Capel Street, Dublin 1.
Professional Bicycle Assembly & Setup: €89. Includes assembly, brake adjustment, gear tuning where applicable, wheel alignment, tyre-pressure checks, fastener checks and a final safety inspection. Available with store collection only.
For delivery outside Ireland, check the available options and final charge at checkout.
06 SIMPLE QUESTIONS & ANSWERS (FAQS)
Rain resistance varies by model. Follow the manufacturer’s manual and avoid immersion or pressure washing. Workshop sealing is model dependent; it does not create a certified IP rating or automatically extend warranty cover. Confirm the available service, price and written terms before booking.
Bicycle delivery within Dublin: €89. Delivery outside Dublin within Ireland: €99.
Free delivery within Ireland applies only when a single order exceeds €4,000. UTO e-bikes remain collection only.
Store collection is free at 157 Capel Street, Dublin 1.
Professional Bicycle Assembly & Setup: €89. Includes assembly, brake adjustment, gear tuning where applicable, wheel alignment, tyre-pressure checks, fastener checks and a final safety inspection. Available with store collection only.
For delivery outside Ireland, check the available options and final charge at checkout.
Drop into our workshop at 157 Capel Street, Dublin 1 (Tue, Thu and Sat 13:00–16:30) or email hello@lifty.co to book.
Frame Size & Fit
Official manufacturer sizing, straight from the brand's own size chart. Select your height to confirm your size and see the vehicles we recommend.
CUBE official size
One Size concept with quick-adjust telescopic seatpost (CUBE official).
Select your height
We confirm your official frame size and recommend e-bikes that fit you.
Size data is published by the manufacturer and verified by Lifty Electric. Still unsure between two sizes? Email hello@lifty.co with your height and inseam and we'll confirm before you order.
Parts & Accessories
We confirm fitment before recommending a replacement for your machine.
Compatibility must be confirmed for your exact model, year or revision and the selected part. Send us the model details and clear photos of the existing part, connectors and labels before ordering.
We do not recommend a part solely from its title, dimensions, connector appearance or nominal voltage.
