Hydraulic vs Mechanical Disc Brakes on Electric Bikes & Scooters: Workshop Stopping Power, Cable Stretch & Dublin Wet Weather Realities

1. Piston Mechanics & Physics: Dual Opposing Pistons vs Single Moving Pad

To understand why brake levers feel drastically different between entry-level and premium micromobility machines, you have to look at caliper mechanics at the wheel hub.

Most standard mechanical disc brakes on budget e-scooters and entry e-bikes use a single-action mechanical floating caliper. Inside the caliper, only the outer pad moves. When you pull the handlebar lever, a braided steel cable pulls an external actuator arm, rotating a ball-bearing ramp that pushes the outer brake pad inward. The inner pad remains completely stationary. For the brake to generate friction, the moving outer pad must first push the thin steel rotor across the caliper gap until the rotor physically deflects and bends sideways into the static inner pad.

This single-sided mechanical design creates three inherent engineering compromises:

• Rotor clearance: a single-sided mechanical caliper relies on the specified pad spacing and controlled rotor deflection. Follow the manufacturer’s adjustment and rotor inspection limits; this does not establish inevitable permanent warping at every stop.
• Pad condition: inspect both pads for wear, alignment and contamination. Do not infer a universal wear pattern from the actuation type alone.
• Mechanical Cable Friction Loss: Steel cables must route through flexible outer housings that bend around headset bearings, folding stems, and frame channels. As cable tension increases under hard braking, the inner wire binds against the housing liner, introducing friction that depends on routing and condition to internal friction before reaching the caliper.

Opposed-piston hydraulic calipers apply force from both sides of the rotor. Piston movement, pad clearance and performance still depend on design, cleanliness, wear and service condition; the system does not guarantee zero rotor movement.

Hydraulic pressure transmits force through the specified fluid circuit, but lever ratios, piston areas, friction, condition and component design still affect performance. It is not a loss-free system or a guarantee of a particular stopping distance.

2. Dublin Wet Weather & Winter Reality: Why Cables Seize

In dry, sunny environments, a properly adjusted mechanical disc brake works adequately for low-speed commuting. In Dublin, the climate exposes the fatal flaw of mechanical brake cables: housing contamination and galvanic binding.

From October through April, Dublin roads are coated in fine road spray, limestone grit, and corrosive road salt spread across commuter arteries like the Quays, Grand Canal cycleways, and suburban commuter corridors. Electric bikes and scooters generate high road spray directly onto the lower caliper and rear dropouts where mechanical brake cables enter their outer ferrules.

Mechanical cables require open ends to allow the wire to travel. Inevitably, gritty surface water enters the housing. Once inside, capillary action draws water along the braided cable. This causes two distinct winter problems:

1. Cable Binding & Drag: Rust and grit form an abrasive paste inside the Teflon liner. The lever becomes stiff to pull, yet the pads take seconds to release after you let go, causing constant rotor drag that drains battery range and overheats the motor.
2. Sub-Zero Freezing: During winter frosts, trapped moisture inside the lower loop of the rear brake cable freezes solid overnight. Riders leave home in the morning with a completely locked rear wheel or an inoperable brake lever until the bike warms up indoors.

Seals help protect the hydraulic circuit, but the complete brake still needs inspection for leaks, contamination, corrosion and wear. Piston and seal materials vary between models. Follow the exact service instructions rather than assuming every hydraulic brake is immune to winter conditions.

3. Stopping Distance & Lever Telemetry: Bench-Tested Comparison

The following comparison describes design and maintenance differences. It is not a measured stopping-distance test. Actual stopping depends on the complete vehicle, speed, rider, tyres, surface, weather and brake condition.

Modulation means controlling braking progressively. Lever feel depends on the particular system and its condition, and either brake type can exceed the tyre’s available grip. Slow before a slippery surface, avoid abrupt braking and leave extra space. Do not use public roads or tram tracks for informal braking tests.

Full hydraulic brakes provide proportional progressive resistance. You can ride right at the limit of traction with precise single-finger feedback, scrubbing off speed smoothly without breaking tyre adhesion.

4. Maintenance Realities: Debunking the Fear of Hydraulic Bleeding

Riders often hesitate to choose hydraulic brakes because of a widespread myth: "Hydraulic brakes are too complicated and leak oil everywhere."

In the workshop, we see the exact opposite reality. Mechanical cable brakes demand vastly more frequent hands-on maintenance than hydraulic systems:

Hydraulic disc brakes eliminate this routine hassle through automatic pad advancement. Inside the caliper, square-profile rubber piston seals flex when fluid pressure pushes the pistons outward. As brake pad material wears away, the pistons incrementally slide forward through the seals, resting closer to the rotor. The gap between pad and rotor remains constant throughout the entire lifespan of the pad.

Automatic pad compensation can reduce routine clearance adjustment on many hydraulic systems, but lever feel can still change with wear, air, contamination, leakage or other faults. A changing bite point or lever reaching the handlebar needs inspection.

Follow the brake manufacturer’s inspection, fluid and bleeding schedule. Different systems specify different fluids and procedures. Service earlier if braking changes, there is a leak or the system has been opened. Neither hydraulic nor mechanical brakes are maintenance-free.

5. Retrofit & Upgrade Options: Semi-Hydraulic vs Full Hydraulic vs Factory Setup

If your current electric bike or scooter is equipped with mechanical cable disc brakes, you have three distinct engineering routes depending on your budget and vehicle architecture:

Option A: Semi-Hydraulic Conversion (X-Tech / Zoom Calipers)

A cable-actuated hydraulic caliper may suit some compatible disc-brake vehicles, but it is not a universal conversion. A drum-brake model cannot accept a disc caliper simply because another scooter can. Verify frame or fork mounts, rotor size and clearance, cable pull, safety sensors and manufacturer approval before proposing parts.

• Advantages: Low hardware cost, retains existing electronic brake cut-off wiring and brake levers, eliminates rotor flex with dual-sided clamping.
• Limitations: You still have a mechanical cable connecting the handlebar to the caliper, meaning cable stretch and housing friction remain partial factors in wet winter weather.

Option B: Full Hydraulic System Retrofit (Nutt, Magura MT5e, Shimano)

A hydraulic retrofit must preserve the vehicle’s required braking and motor-cutoff functions using compatible components. Sensor type, wiring, connector and logic vary between systems. A matching connector shape alone does not establish compatibility; use the vehicle and brake manufacturer’s instructions.

• Potential advantages: Comfortable lever effort and progressive control on a correctly matched, maintained system. Actual stopping depends on the tyres, surface, speed, load, rider and complete brake setup; no universal percentage improvement is established here.
• Limitations: Requires professional internal hose routing through stems or frame channels, precise barb and olive fitting, and a complete system bleed with fresh mineral oil.

Option C: Factory-Equipped Hydraulic Machines

A factory-equipped system can simplify component integration and warranty support. Compare the complete bike or scooter and its service needs rather than assuming an aftermarket conversion or factory label is always the best value.

Factory-integrated brake systems are selected as part of a complete vehicle specification. Check the precise bike’s maximum system weight, brake and rotor compatibility, and maintenance instructions. A brand or brake type does not guarantee safe stopping at a universal load on every surface.

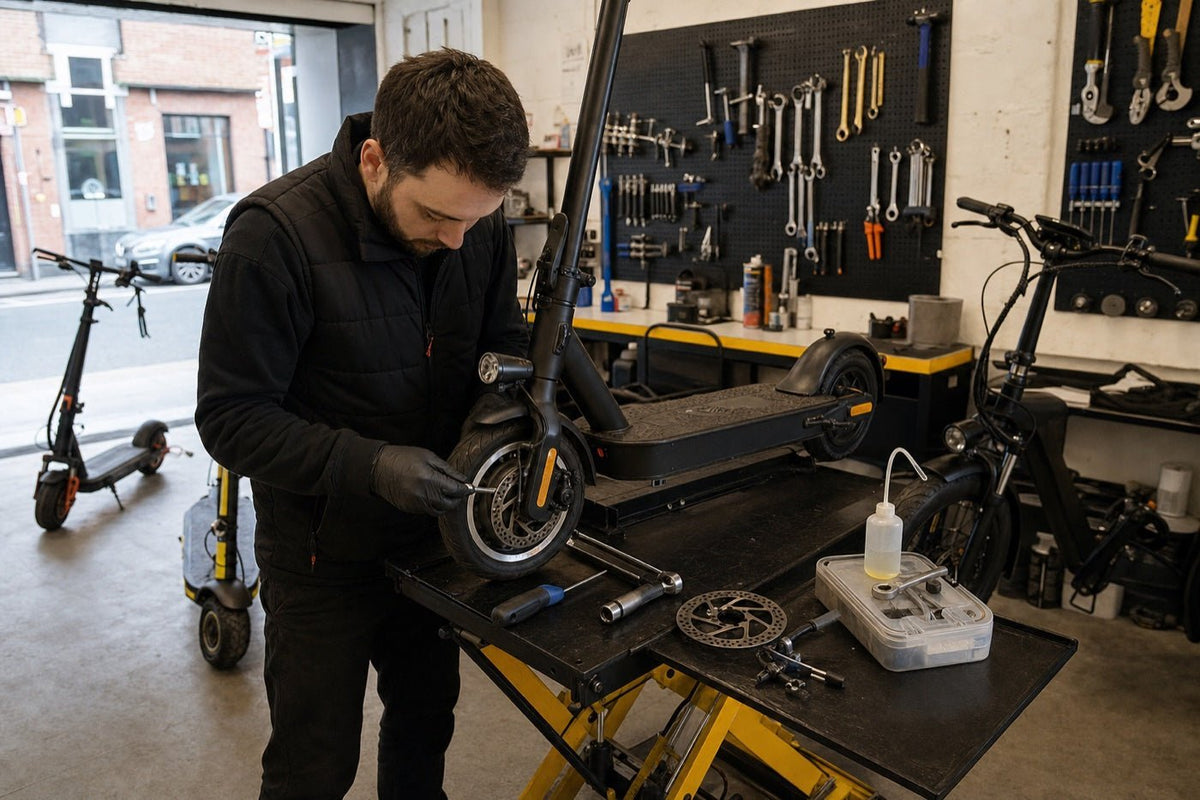

6. Lifty Labs Dublin Workshop Services: 157 Capel Street

For a pad replacement, adjustment or proposed retrofit, ask Lifty to confirm support for the exact vehicle, fitted brake system and intended work before booking.

We provide full brake diagnostic and maintenance services at our central Dublin workshop:

• Pad fitting: Select the compound approved for the exact caliper and rotor. Investigate contamination, wear and alignment rather than promising that a pad change eliminates every squeal.
• Rotor inspection and alignment: Check disc condition, thickness, alignment and the manufacturer’s repair or replacement limits.
• Hydraulic service: Use only the exact manufacturer-specified fluid and procedure. Mineral oil, DOT fluids and different proprietary formulations must not be assumed interchangeable.
• Full Hydraulic Retrofits: Professional installation of dual-piston hydraulic kits with electronic motor cut-off calibration for e-scooters and e-bikes.
